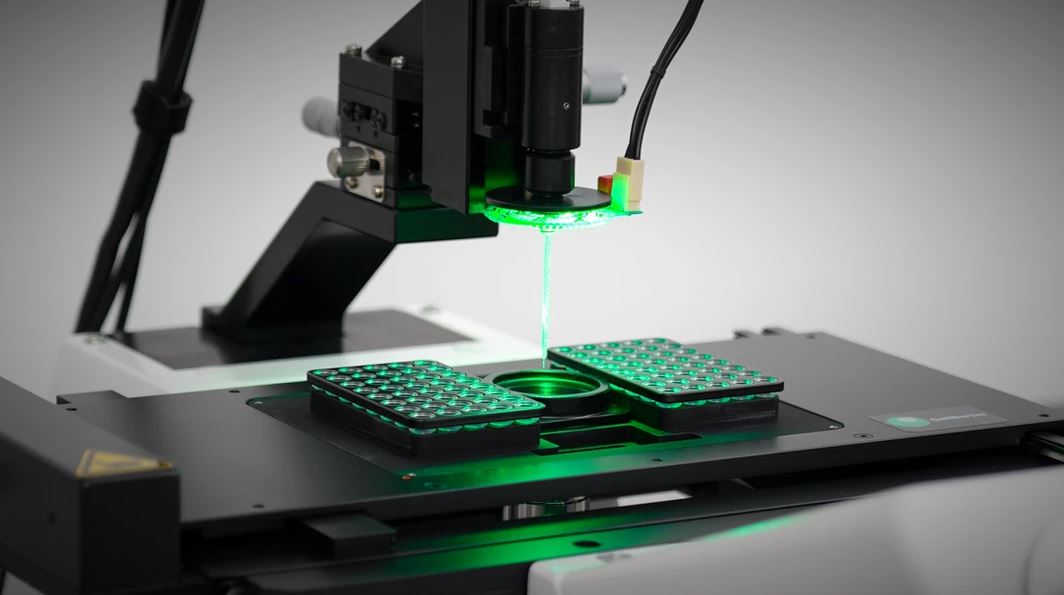

The full system includes all the necessary accessories you might need. Thanks to its open design, it’s a highly versatile device with the possibility of shaping it to your needs.

MAIN FEATURES

• Unprecedented single cell isolation efficiency
• New standard in precision - 1 nanoliter pipetting accuracy
• Can isolate both suspended and surface attached cells
• Viable cells after sorting. One single cell arrives to each PCR tube
• 10 PCR strips containing 80 tubes can be filled in a cycle
• Microwell arrays fortesting single cell deposition in situ
• Pick up volume of~1 nanoliter-deposition volume less than 5 nanoliters
• Speed: 3-4 cells/min.-when collecting multiple cells sorting speed is 1 cell/second
• Both unlabeled and fluorescent cells are recognized by computer vision
• Sort cells labeled by fluorescent molecular probes or markers
• Multichannel detection using the fluorescentfiltersetup of the microscope

IMAGE, ISOLATE, SEQUENCE

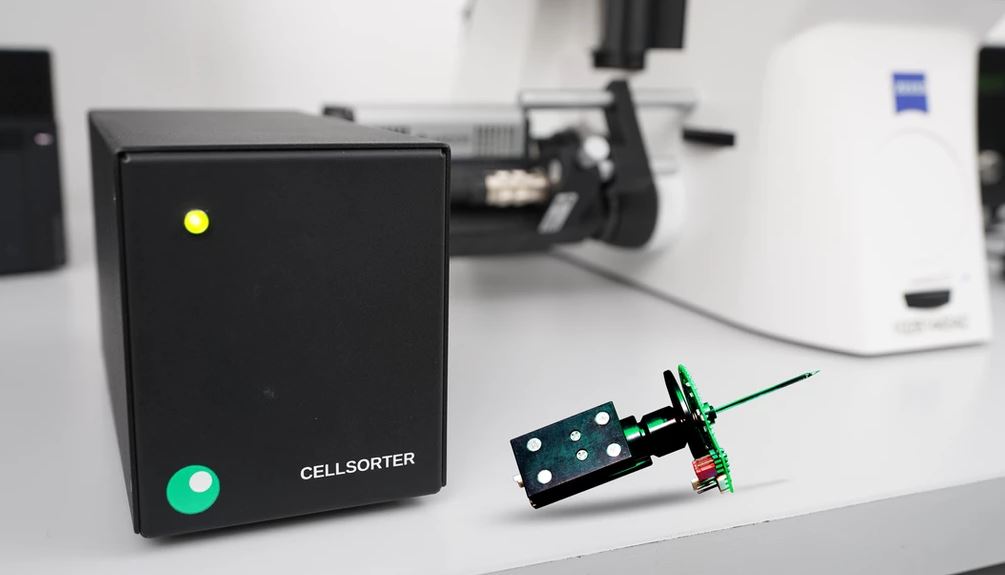

• Integrated compact device - straightforward operation
• Compatible with super-resolution microscopy and high content screening.
• Sequence exactly that cell you need.

Modular options:

• Microscope - Can be almost any inverted microscope. We recommend Zeiss,Nikon Olympus.
• Camera - Including Andor, PCO, Flir and Hamamatsu
• Motorized stage - There are several choices depending on size and speed including Prior and Märzhäuser.
• Light source - We recommend Prior Lumen 200s for standard use and Lumencor Spectra.
• Objective lens - Our standard equipment comes with a 10x lens, higher magnifications are also possible.
• Levels of motorization - There is an option for additional Filter turret and Objective Changer (nosepiece).
• Sample Holder - 35 mm Petri dish, Microscope slide, Chamber slides, Standard multi-well plate (ie.: 96 well-plate).
• Container for Single Cell Deposition - PCR tubes/strips, PCR plates, Mutli-well plates.
• Brightfield or phase contrast illumination: Standard transmitted light source of the microscope.
